Flat 90°Elbow with Cover

Cover with Winged locks

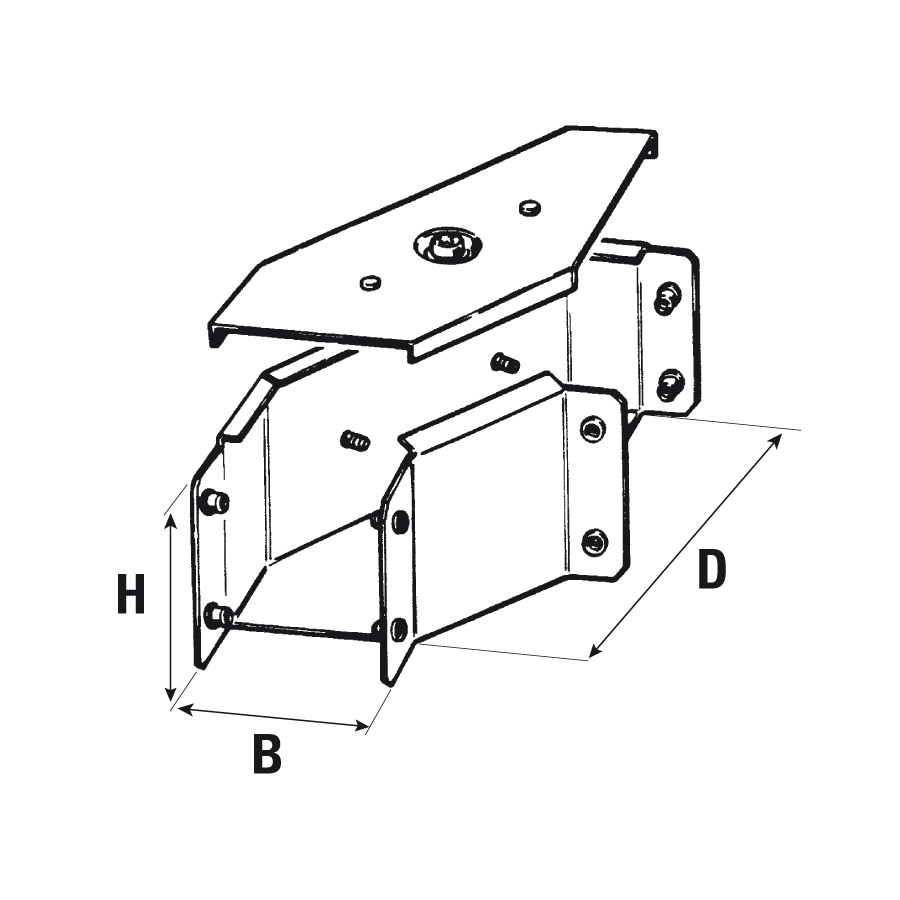

Dimension brush Thickness Technical Info Code
H W (B) [mm] d No.of Inserts Ø6
50 50 1,20 86 4 M0 120 0505
75 75 1,20 129 4 M0 120 0707
100 100 1,20 173 8 M0 120 1010
100 100 2,00 173 8 M0 120 1010
100 100 2,00 174 8 M0 120 1010
100 150 1,50 253 8 M0 120 1015
100 150 2,00 253 8 M0 120 1015
100 150 2,00 254 8 M0 120 1015
100 200 1,50 304 8 M0 120 1020
100 200 2,00 304 8 M0 120 1020
100 200 2,00 305 8 M0 120 1020
100 300 1,50 406 10 M0 120 1030
100 300 2,00 406 10 M0 120 1030
100 300 2,00 407 10 M0 120 1030
100 400 2,00 508 10 M0 120 1040
100 500 2,00 610 10 M0 120 1050
100 600 2,00 712 10 M0 120 1060
150 300 2,00 406 10 M0 120 1530
150 400 2,00 506 10 M0 120 1540

50 Sendzimir basis +”peraluman” aluminium cover
(thickness 3,00 + 1,50mm)

Not walkable per UL standard

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
50 Sendzimir basis+peraluman aluminium Cover
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Flat 90°Elbow with Cover
