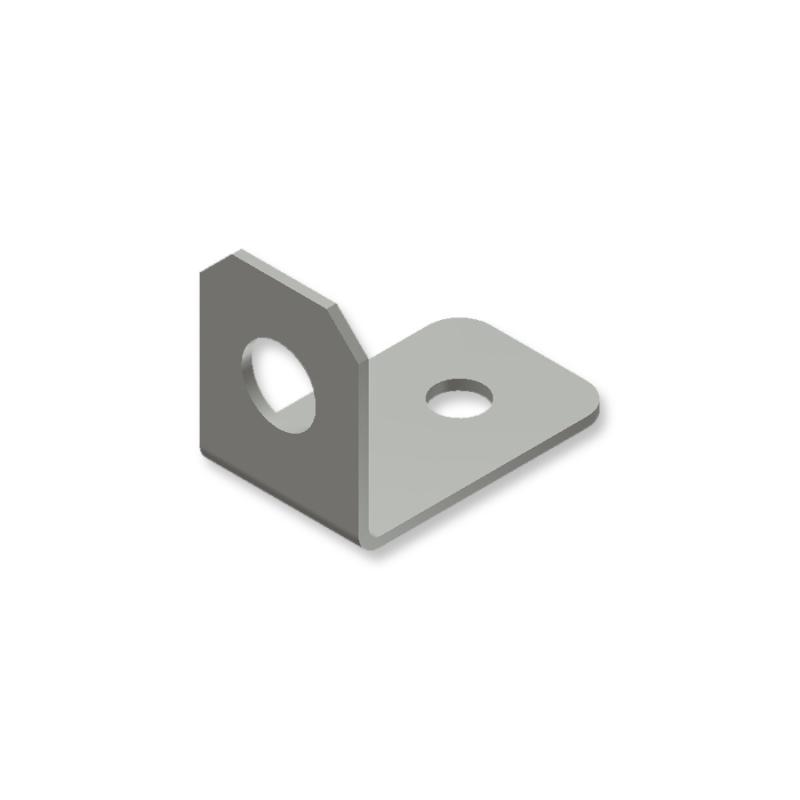

Angle support

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

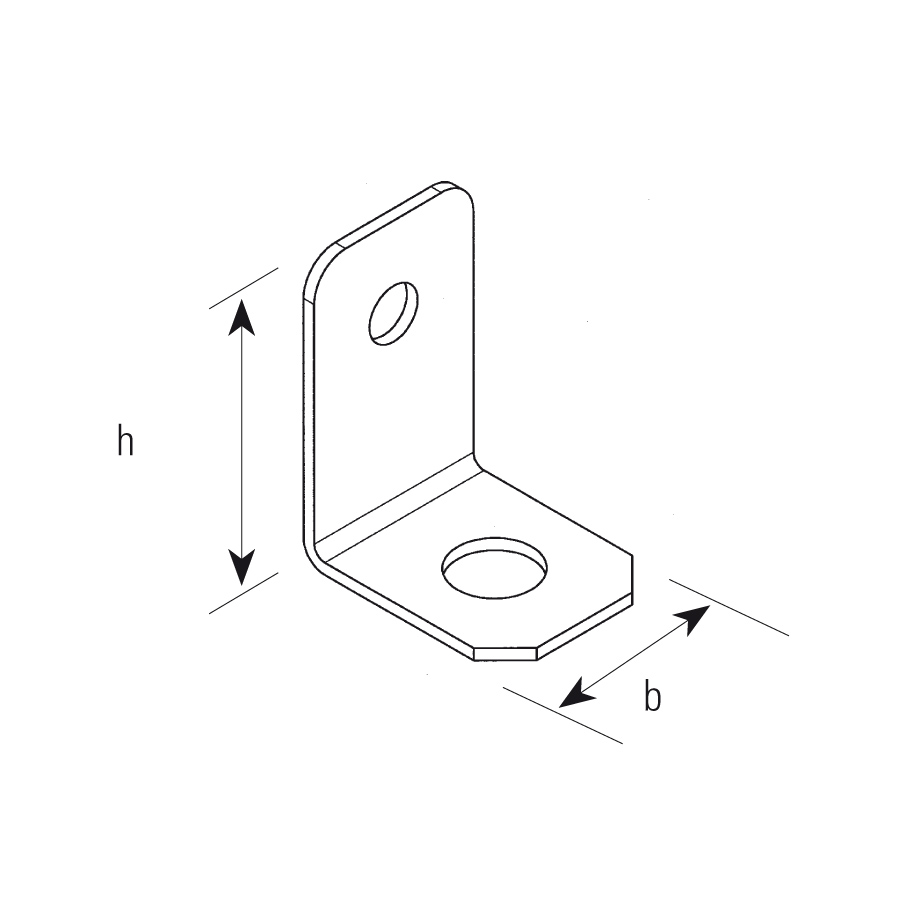

brush Thickness Weight Technical Info Little hole Large hole Code
[mm] [Kg] w (b) h Ø Ø
2,00 0,05 30 49 9 14 T0 316 3014
2,00 0,05 30 49 9 17 T0 316 3017
2,00 0,05 30 49 9 21 T0 316 3021
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

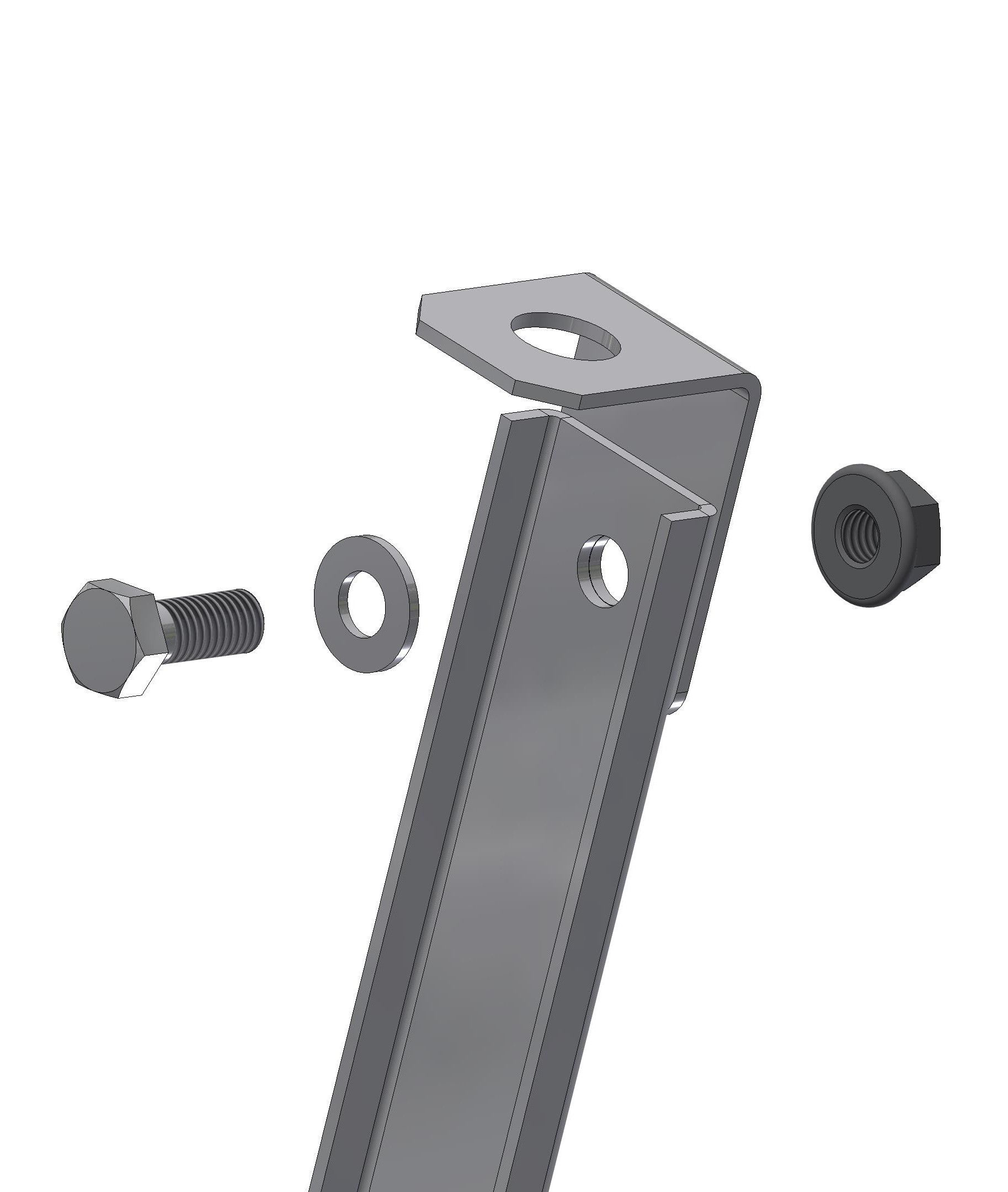

n.1 M8x20 T0 623 0820 + n.1 M8 T0 621 0800 + n.1M8 T0 650 0800

Not included

Angle support
