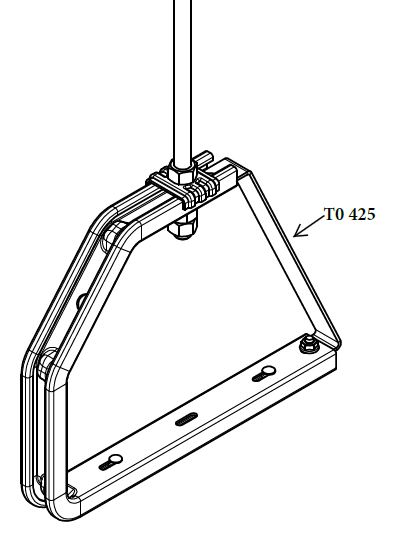

Balance bracket with hole Ø17 - Ø21 for functional integrity

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

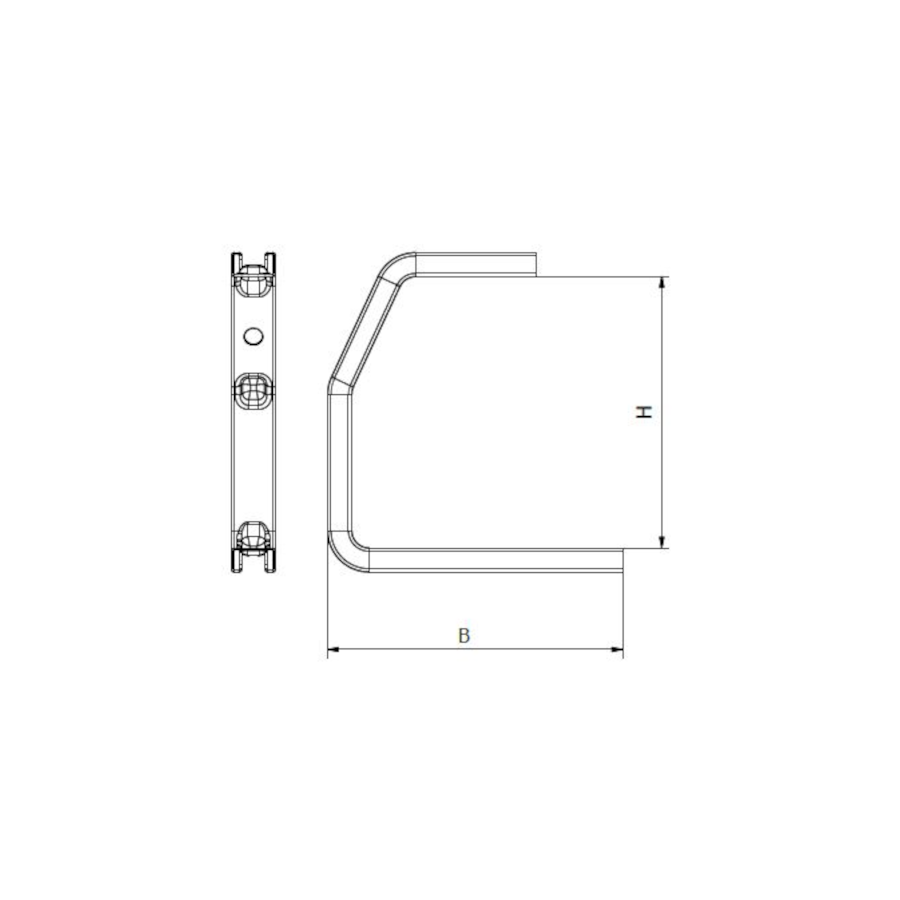

Dimension brush Thickness Weight Technical Info Holes Code
W (B) H [mm] [Kg] *SWL(N) Ø
200 250 2,00 1.063 740 17 T0 421 1720
300 250 2,00 1.28 740 17 T0 421 1730
100 250 2,00 0.851 740 21 T0 421 2110
200 250 2,00 1.063 740 21 T0 421 2120
300 250 2,00 1.28 740 21 T0 421 2130
List of Coatings
brush
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

According to:
EN 61537-1 ed.2007

Fire Resistance test - UNI EN 1363-1:2020

Bolts Not included

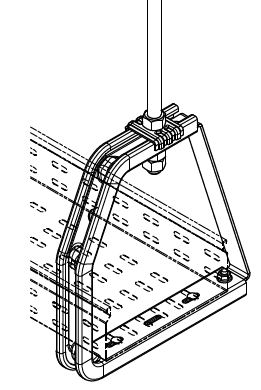

Typical application


Balance bracket with hole  Ø17  - Ø21 for functional integrity
