Zamet - ZT - T0 413 - Single bracket for threaded bar for functional integrity

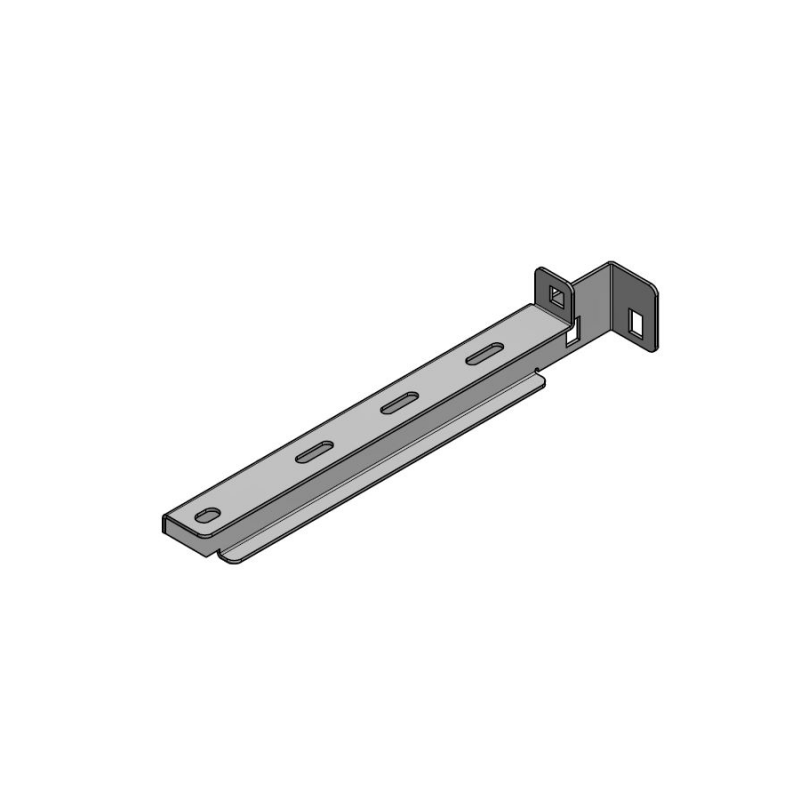

Single bracket for threaded bar for functional integrity

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

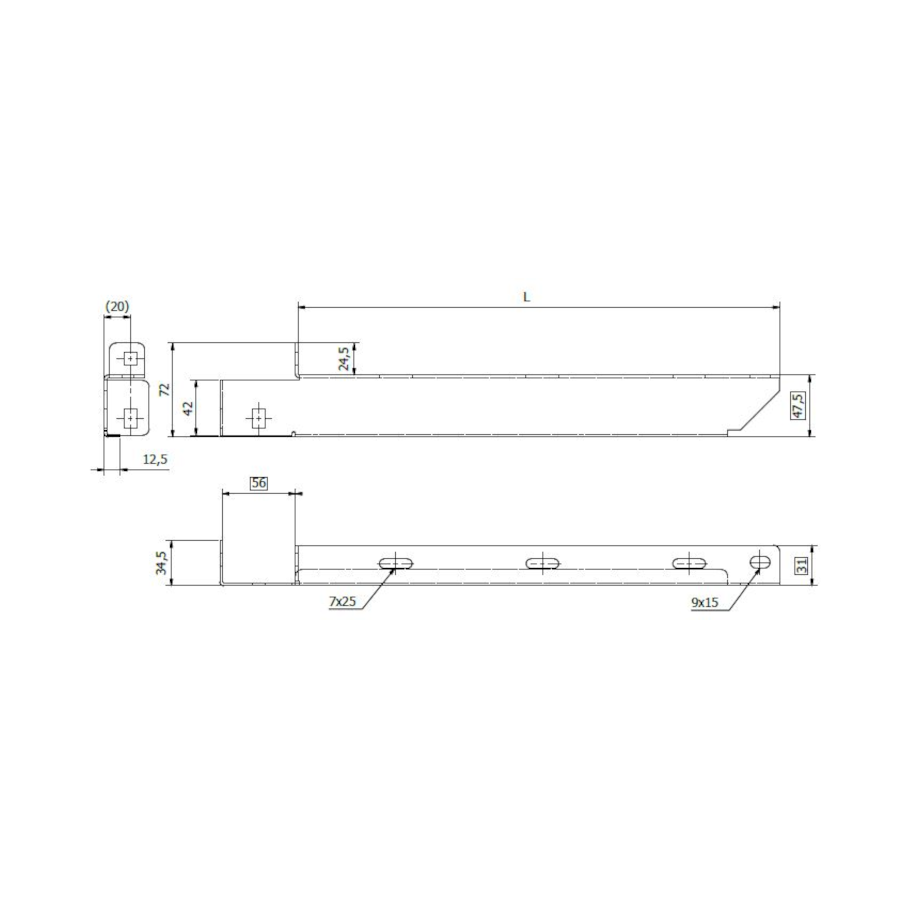

Dimension			Thickness	Weight	Technical Info			Code

W (B)			[mm]	[Kg]	L	* SWL (Nm)	* SWL (N)

200	40	41	2,00	0,41	268,5	200	-	T0 413 0020
300	40	41	2,00	0,54	369,5	200	-	T0 413 0030

SWL Safe Working Load
* Bending moment of the pendant bracket at the supporting bracket:
** SWL of the pendant bracket with bracket sup-ported at the centre:

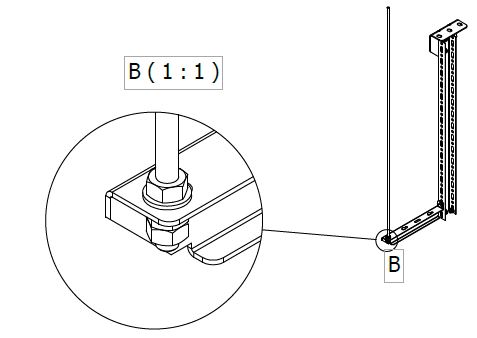

(When it is mounted on the high load capacity section item no. T0 042 2000 and in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)
