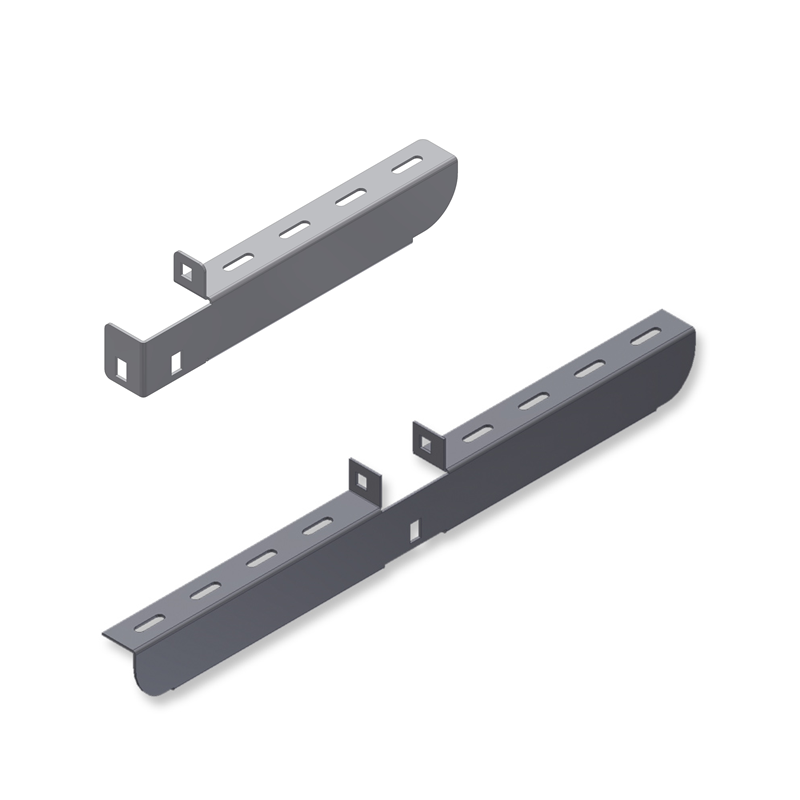

Single bracket and double

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

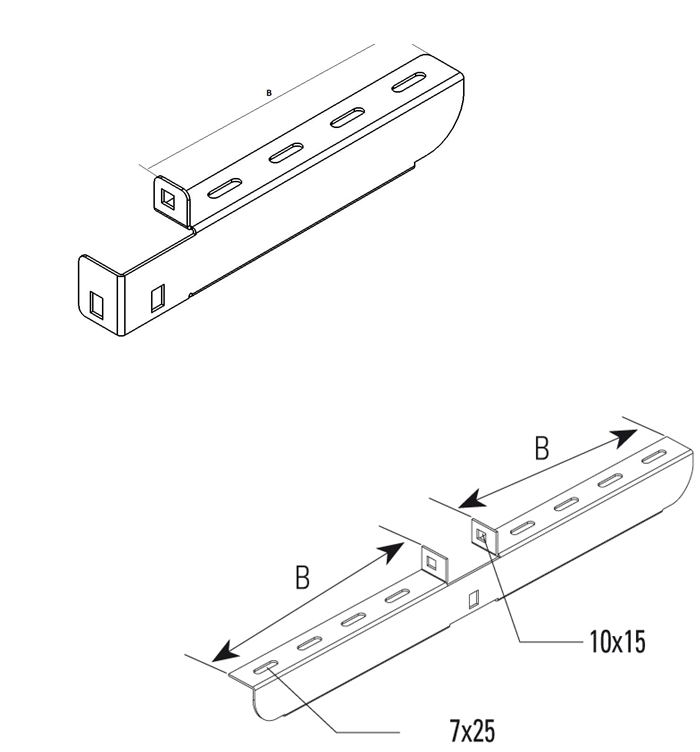

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] * SWL (Nm) * SWL (N)
200 2,00 0,33 200 - T0 312 0020
300 2,00 0,46 200 - T0 312 0030
100 x 100 2,00 0,42 - 2210 T0 312 1010
200 x 200 2,00 0,67 - 2210 T0 312 2020
300 x 300 2,00 1,01 - 2210 T0 312 3030

SWL Safe Working Load
* Bending moment of the pendant bracket at the supporting bracket:
** SWL of the pendant bracket with bracket sup-ported at the centre:

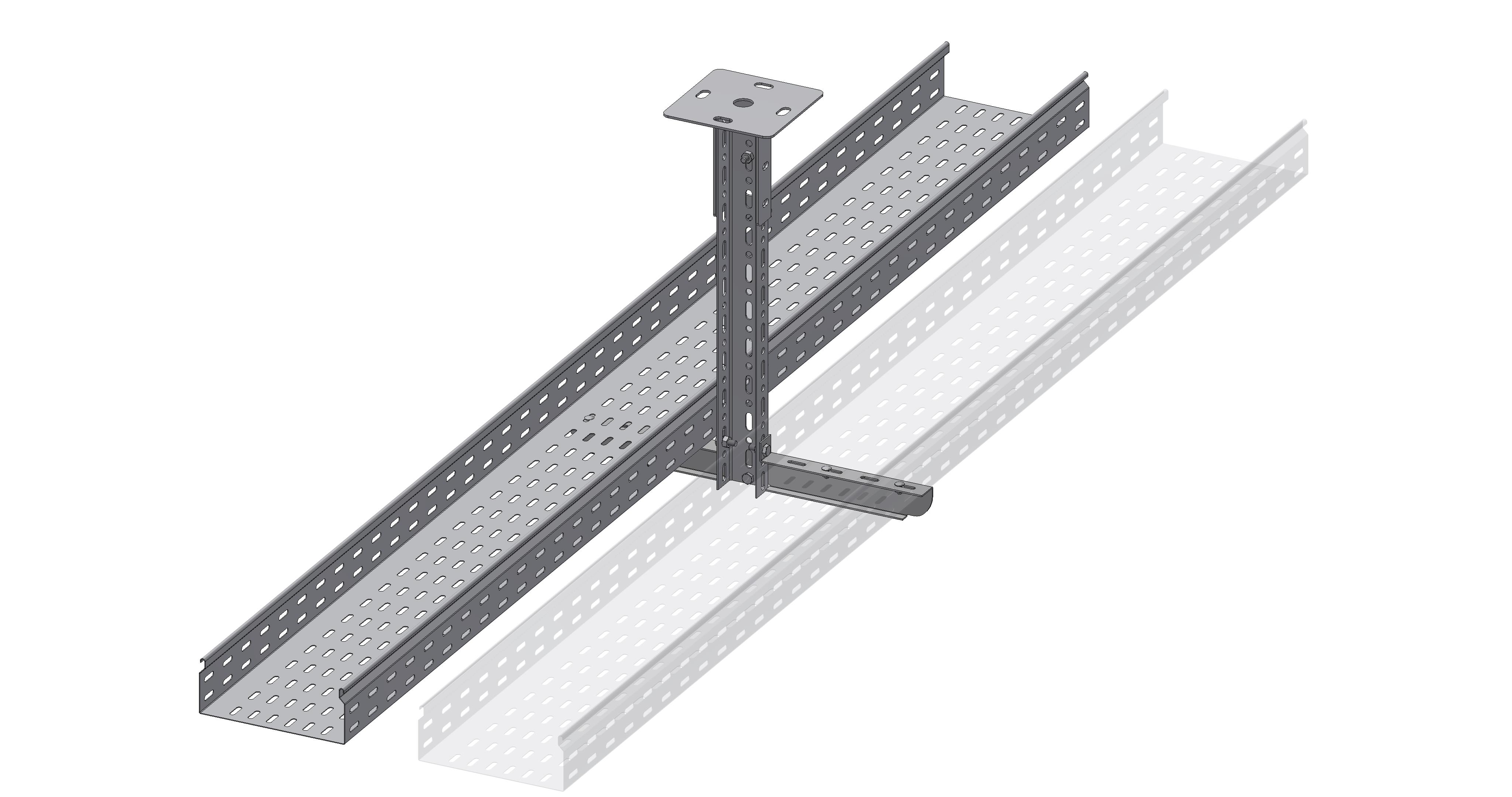

(When it is mounted on the high load capacity section item no. T0 042 2000 and in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

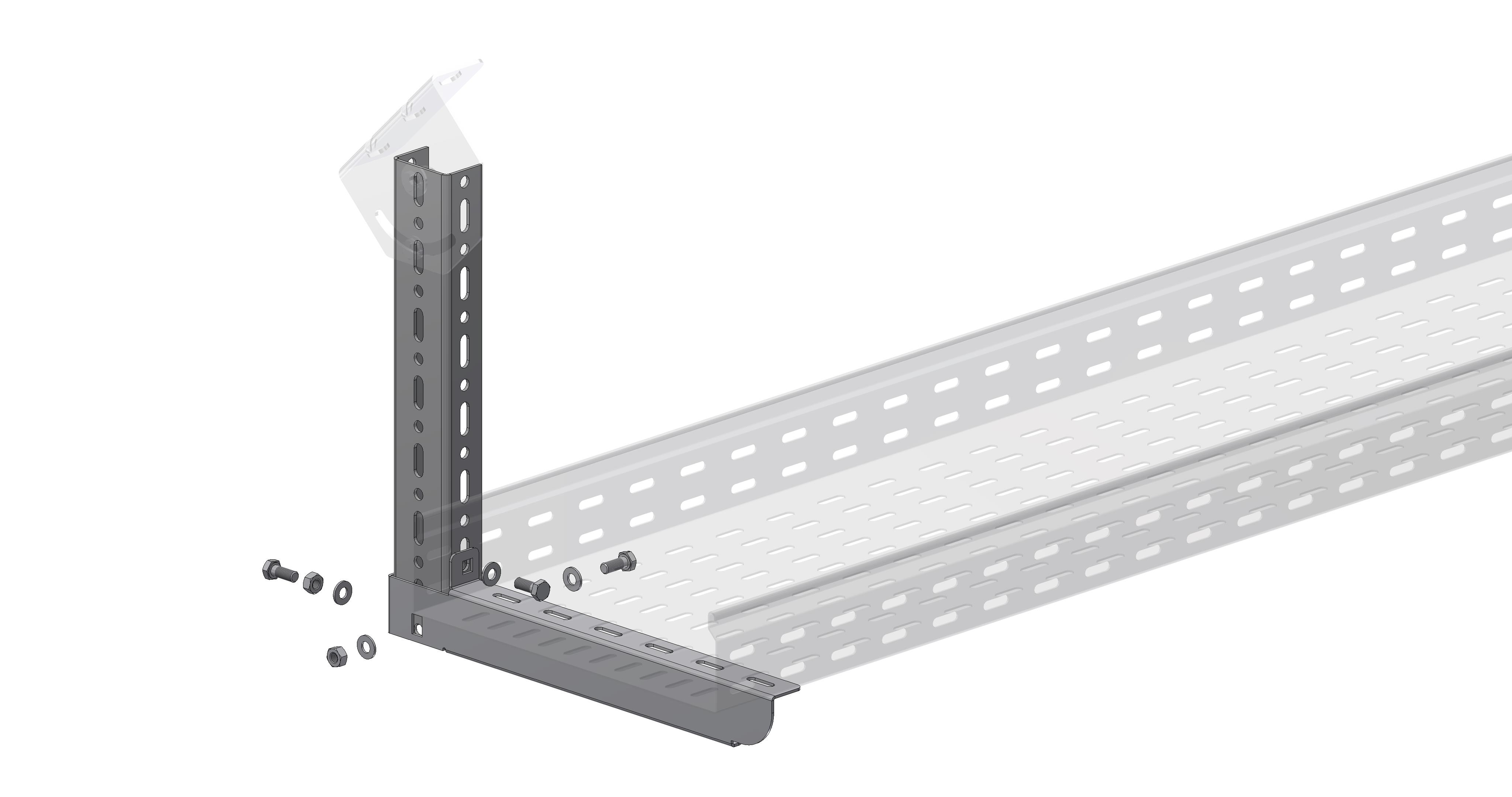

n.3 M8x20 T0 623 0820 + n.3 M8 T0 624 0800 + n.6 M8 T0 650 0800
Not included

n.3 M8x20 T0 623 0820 + n.3 M8 T0 624 0800 + n.6 M8 T0 650 0800
Not included

M6x10/M6x12

M6

T0 620 0610 01 / T0 620 0612 40 o 41

T0 621 0600

}

For mounting the trunking
