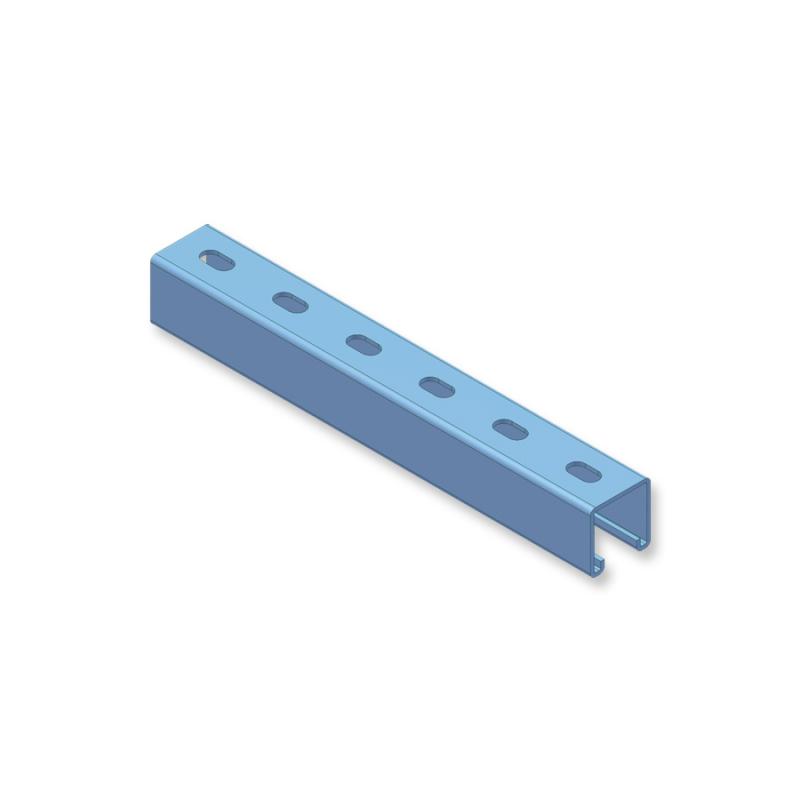

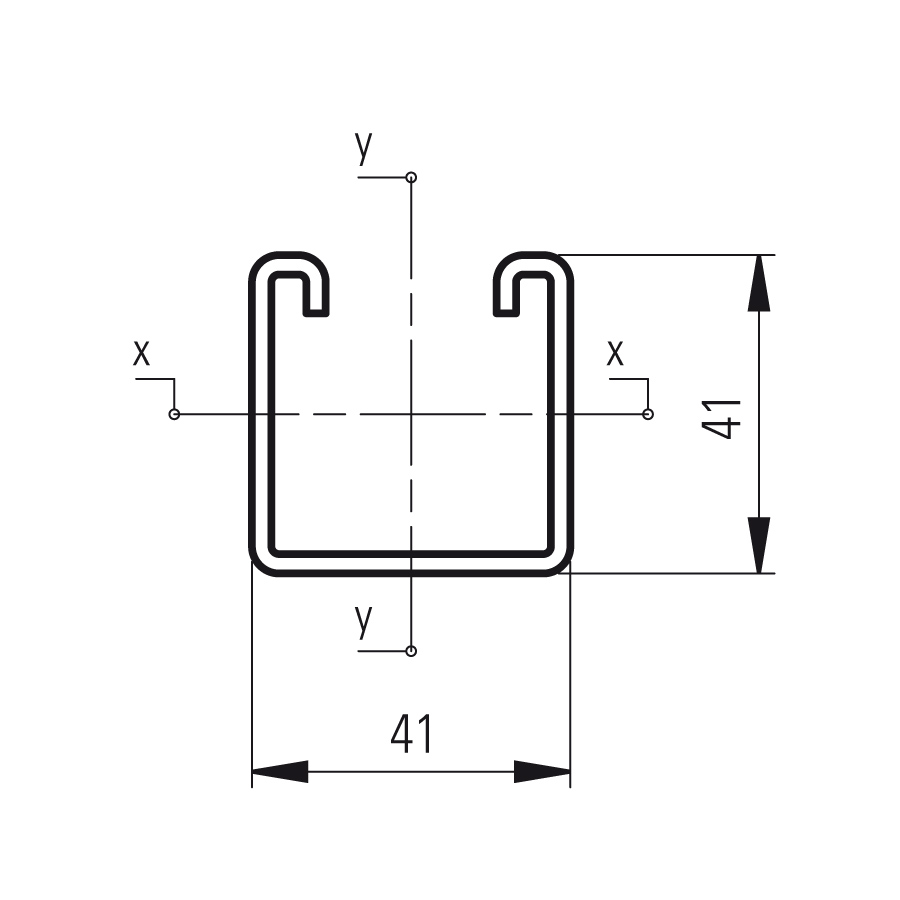

Simple Section - 41x41
Dimension brush *Thickness identifier [mm] Weight Code
L 15 - 20 - 25 [Kg/m]
3000 1,50 - 2,00 - 2,50 1,50 - 1,99 - 2,49 F0 S41 3000
3000 2,00 1,99 F0 S41 3000
3000 1,50 - 2,00 - 2,50 1,50 - 1,99 - 2,49 F0 S41 3000

Code composition :
Add the desired coating and thickness to the code.

On demand: L. 4000 - 6000

Dimension of slots: 13 x 22 - Interaxis of slots: 50mm
Material: S 235JR - DIN EN 10025 • S 250GD - DIN EN 10326

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
76 ZnMg ZM310 - UNI EN 10346
Simple Section - 41x41
