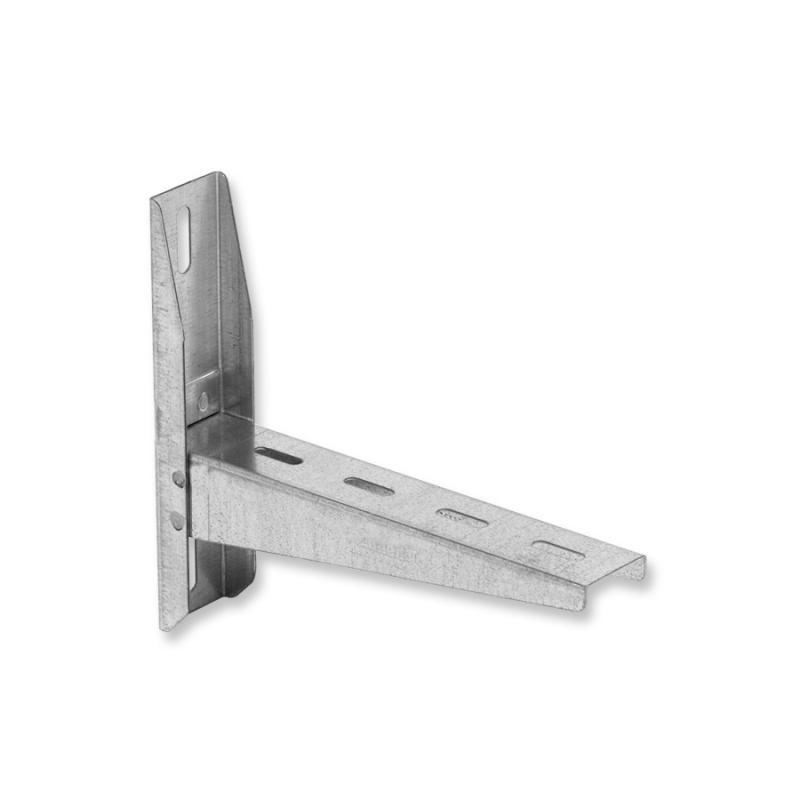

Wall bracket
Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] a w (b) c d *SWL (N)
100 1 0.26 200 130 45 150 480 T0 350 0010
150 1 0.3 200 160 45 150 520 T0 350 0015
200 1.2 0.45 200 210 45 150 950 T0 350 0020
300 1.2 0.56 200 310 45 150 1110 T0 350 0030

SWL Safe Working Load
*Safe Working Load of the supporting bracket:
(F according to the paragraph 10.8.1 of the standard EN 61537:2007, verified with the test configuration shown in figure 6b)

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

M6x10/M6x12 T0 620 0610 / T0 620 0612

}

For mounting the trunking
M6 T0 621 0600

Not included

Wall bracket
