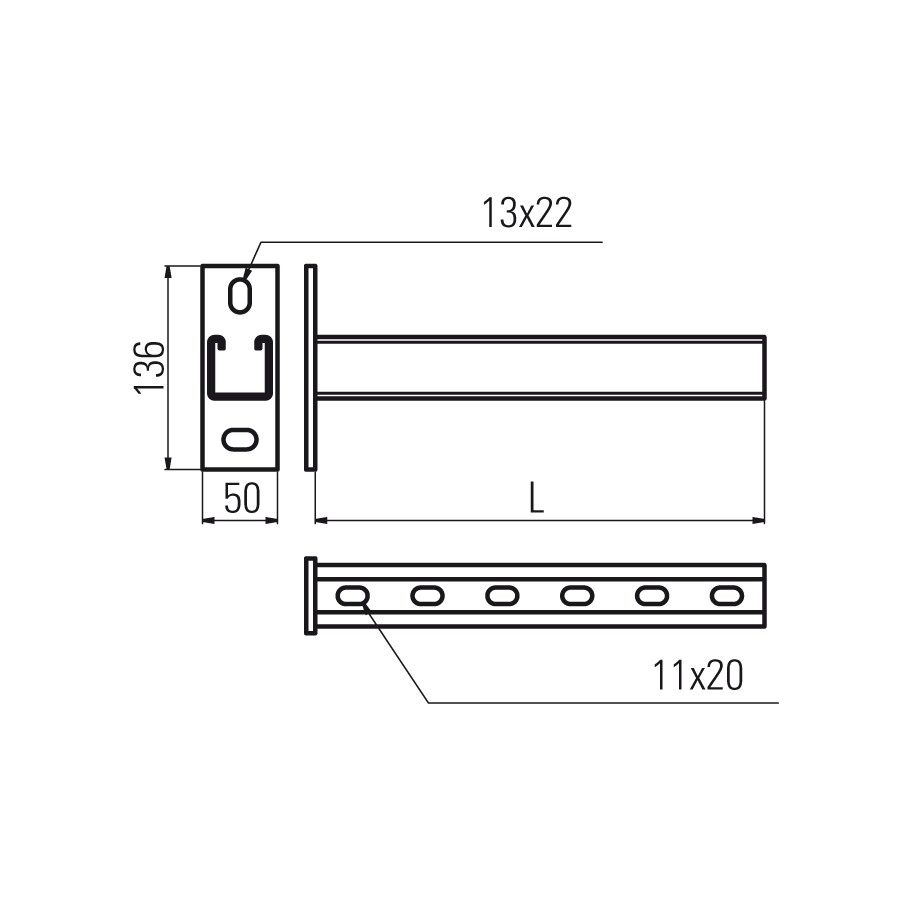

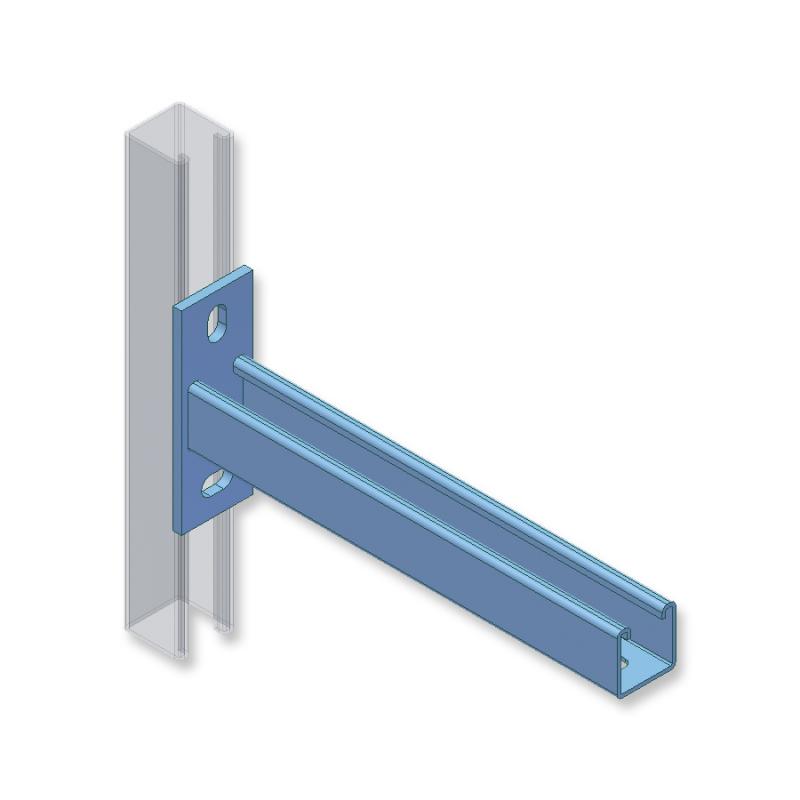

Bracket with section

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
Dimension brush Weight Plate th Th. Capacity Th.2,5 Stainless Steel Th Capacity Th.2,5 Code
W cable tray L (*) [Kg] [mm] [mm] [Kg] [mm] [Kg]
150 200 0,63 6,0 2,50 316 2,00 280 F0 766 0015
200 250 0,85 6,0 2,50 296 2,00 250 F0 766 0020
300 350 1,12 6,0 2,50 198 2,00 167 F0 766 0030
400 450 1,54 6,0 2,50 120 2,00 101 F0 766 0040
500 550 1,82 6,0 2,50 77 2,00 65 F0 766 0050
600 650 2,09 6,0 2,50 55 2,00 45 F0 766 0060

L (*) : approximate dimensions

Bolts recommended for assembly on section bars:
- M10 o M12 (F0 806 + T0 623 + T0 650)
- M10 o M12 (F0 816 + T0 624)

List of Coatings
brush
03 Hot dip galvanizing - UNI EN ISO 1461
25 Electrogalvanization - DIN 50962
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088

Safety coefficient for brackets: 2,5

Bracket with section
