For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
 |
Code | |||||
|---|---|---|---|---|---|---|
| T0 302 0000 | ||||||
SWL Safe Working Load
* Bending moment of the pendant bracket at the ceiling plate
(M1 according to the paragraph 10.8.2.1 of the standard EN 61537:2007, verified with the test configuration shown in figure 7a carried out on the item equipped with a high load capacity section item no. T0 042 2000 0.8 m long)
**Tensile strength of the pendant bracket
(F according to the paragraph 10.8.2.2 of the standard EN 61537:2007, verified with the test configuration shown in figure 7b carried out on the item equipped with a high load capacity section item no. T0 042 2000 0.8 m long)
| 03 | Hot dip galvanizing - UNI EN ISO 1461 | |
| 40 | Stainless steel AISI 304 - UNI EN 10088 | |
| 41 | Stainless steel AISI 316L - UNI EN 10088 |
| Certified System |
EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

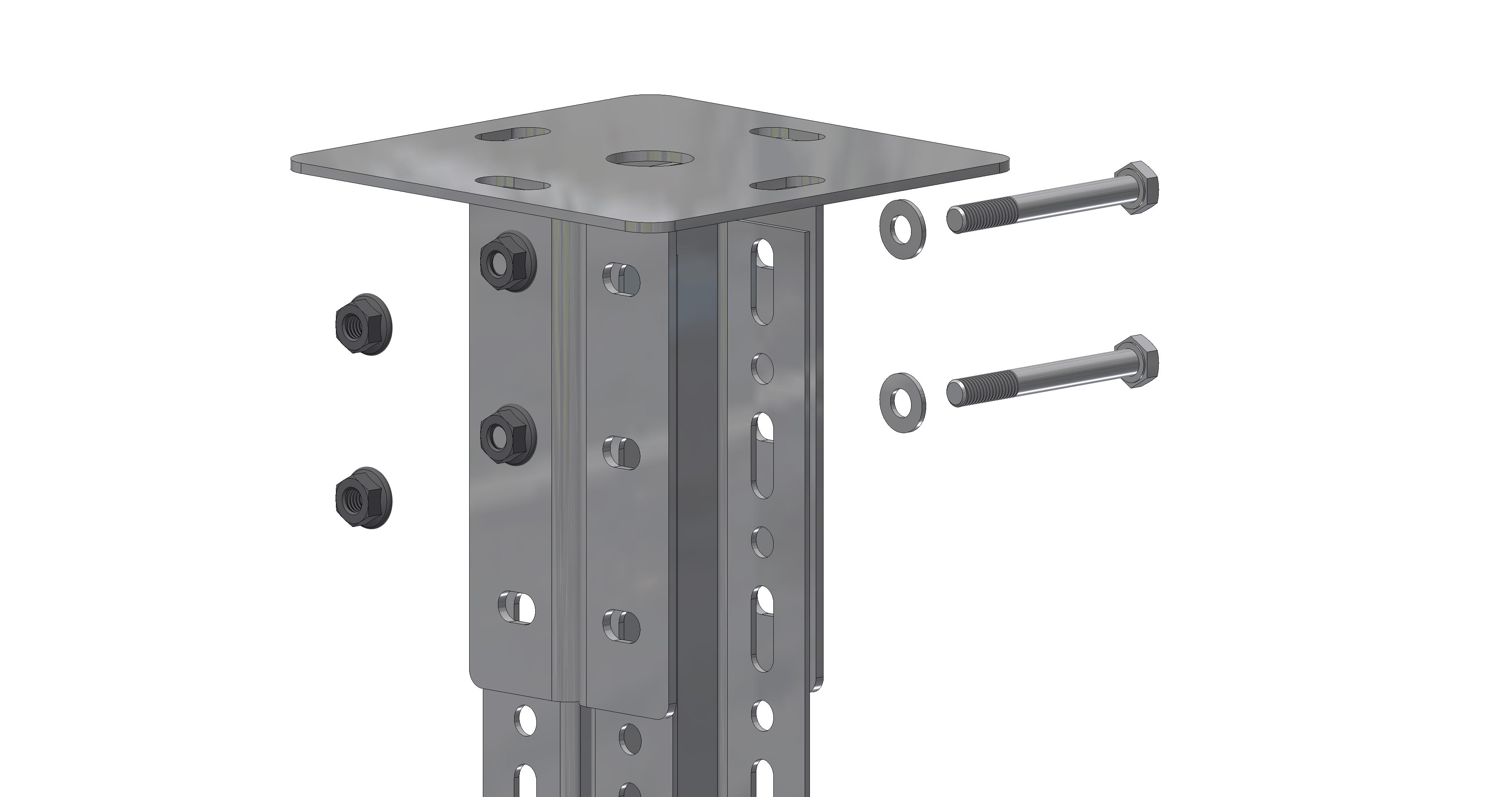

n.4 M8x70 T0 623 0870 + n.4 M8 T0 621 0800 + n.4 M8 T0 650 0800
or
n.8 M8x20 T0 623 0820 + n.8 M8 T0 621 0800 + n.8 M8 T0 650 0800
Not included
Recomended as spacer cod. F0 246 0001 03
