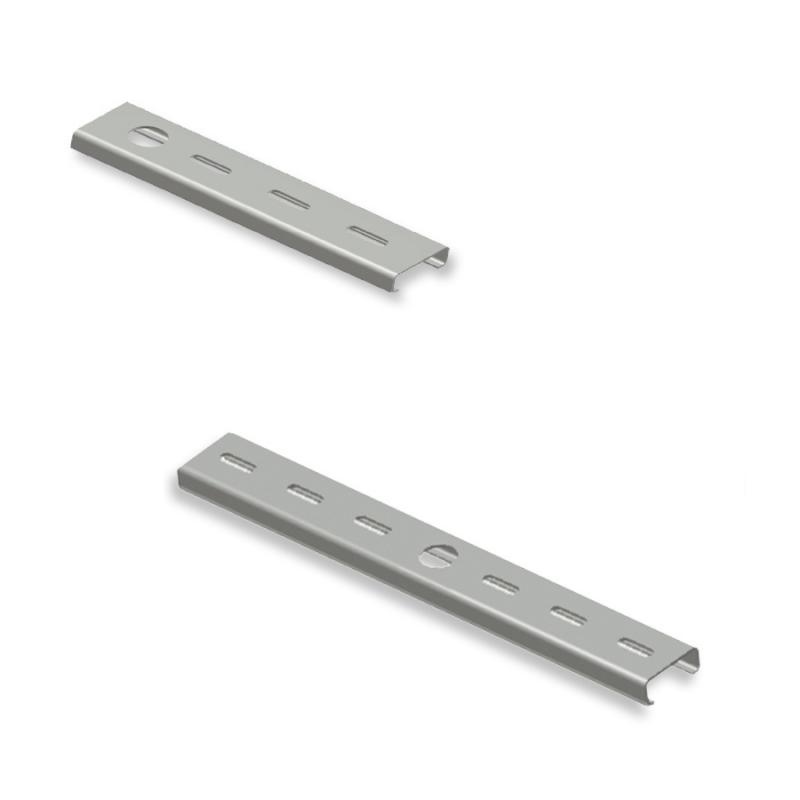

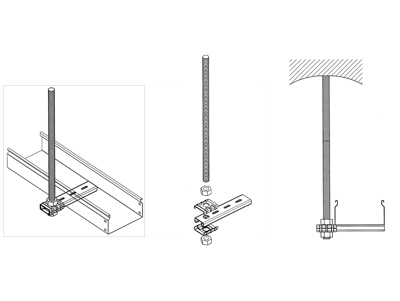

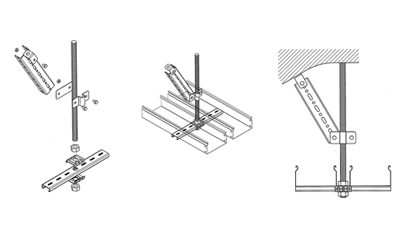

Single bracket and double for diameter 20 threaded bar

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

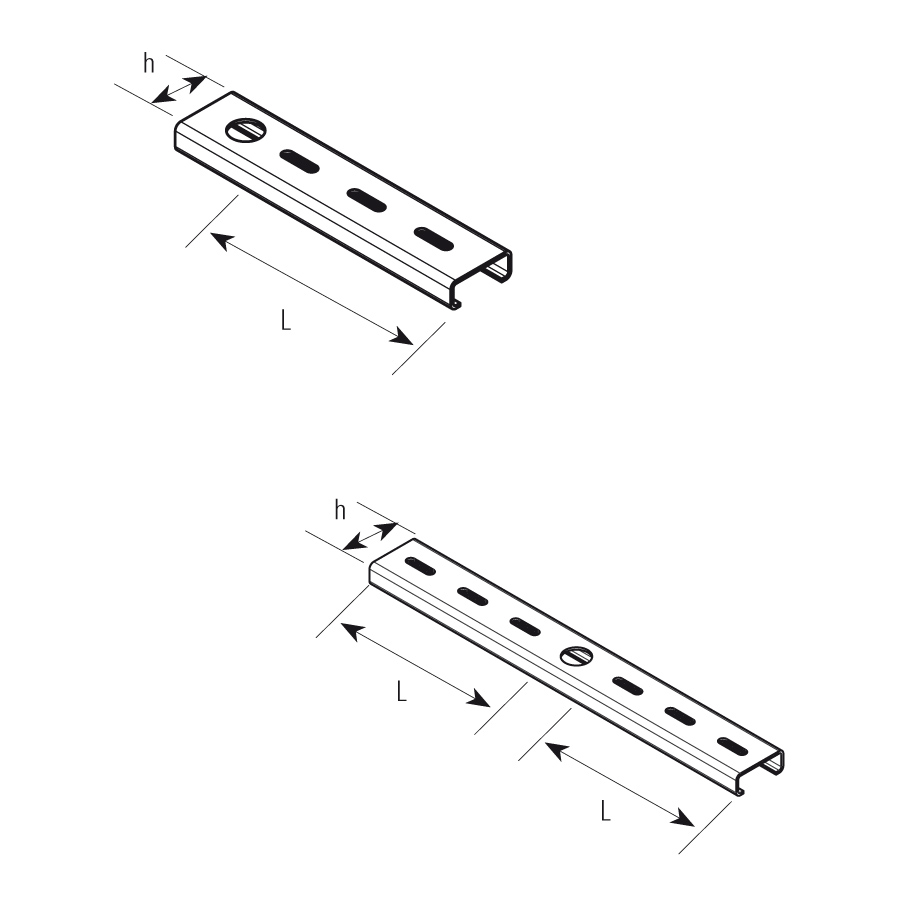

Dimension					Thickness	Weight	Technical Info				Code

L					[mm]	[Kg]	h	*SWL(Nm)	**SWL(N)	Ø Hole

100	01	03	40	41	2,00	0,18	45	100	-	21	T0 311 0010
150	01	03	40	41	2,00	0,27	45	100	-	21	T0 311 0015
200	01	03	40	41	2,00	0,32	45	100	-	21	T0 311 0020
250	01	03	40	41	2,00	0,38	45	100	-	21	T0 311 0025
300	01	03	40	41	2,00	0,44	45	100	-	21	T0 311 0030
100 x 100	01	03	40	41	2,00	0,38	45	-	1800	21	T0 311 1010
150 x 150	01	03	40	41	2,00	0,43	45	-	1800	21	T0 311 1515
200 x 200	01	03	40	41	2,00	0,66	45	-	1800	21	T0 311 2020
250 x 250	01	03	40	41	2,00	0,82	45	-	1800	21	T0 311 2525
300 x 300	01	03	40	41	2,00	0,99	45	-	1800	21	T0 311 3030

SWL Safe Working Load
* Bending moment of the pendant bracket at the supporting bracket:
** SWL of the pendant bracket with bracket sup-ported at the centre:
(When it is mounted on the threaded rod (diameter 20 mm) item no. R0 315 2000 in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	03	Hot dip galvanizing - UNI EN ISO 1461
	40	Stainless steel AISI 304 - UNI EN 10088
	41	Stainless steel AISI 316L - UNI EN 10088
